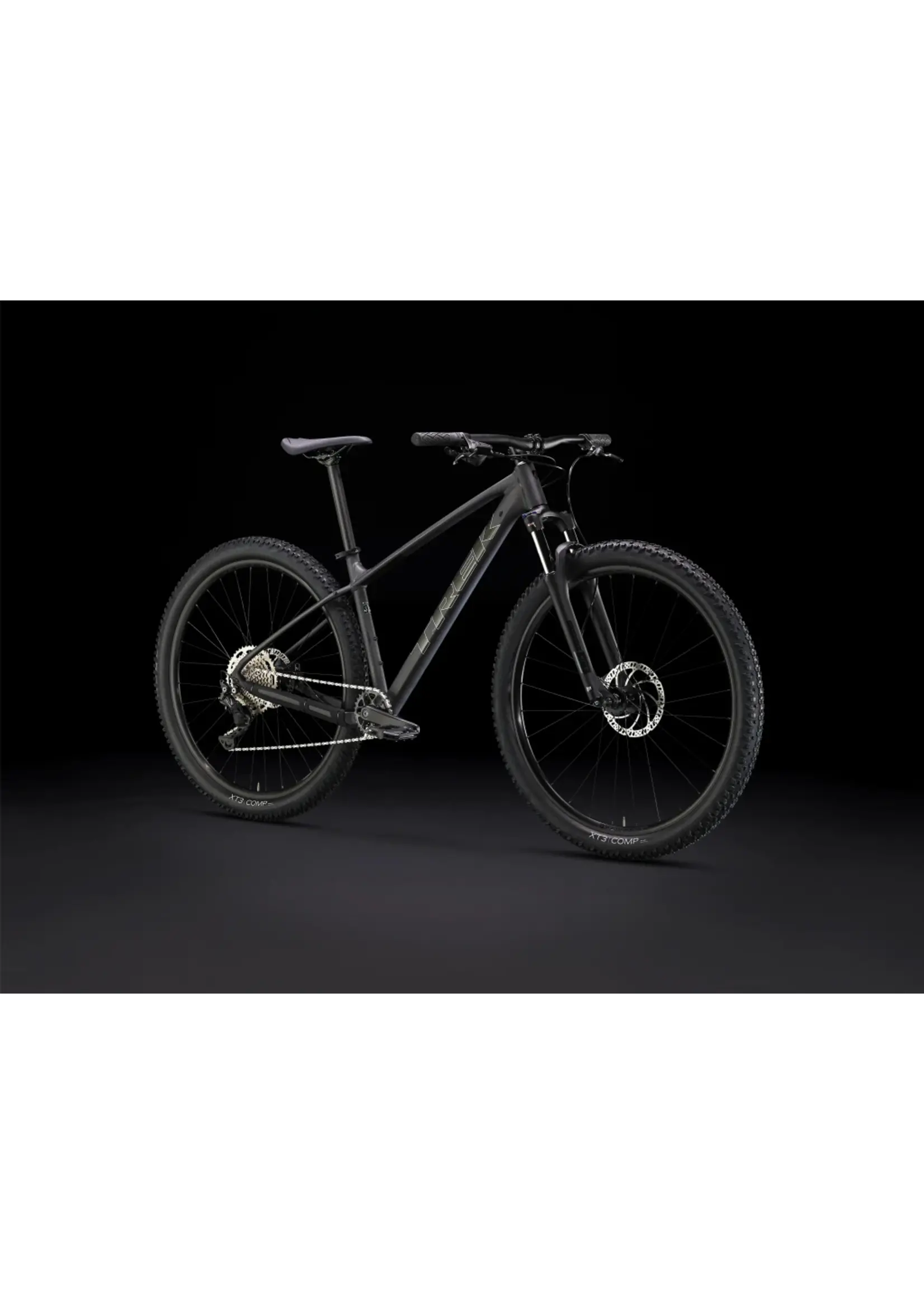

Trek Marlin 6 Gen 3

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

*Frame Size: Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork Size: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel: 120mm, XXS: 80mm
Hub front: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Spokes 14g stainless steel, black
Max tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40")
Shifter Shimano Deore M4100, 10 speed
Rear derailleur Shimano Deore M5120, long cage
*Crank Size: XXS
Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
Size: XS , S , M , ML
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
Size: L , XL , XXL
Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length
Bottom bracket: VP BC73, 73mm, threaded cartridge
Cassette: Shimano Deore M4100, 11-46, 10 speed
Chain: KMC X10, 10 speed
Pedal: VP-536 nylon platform
Max chainring size 1x: 34T, 2x: 36/22
Saddle Bontrager Arvada, steel rails, 138mm width
Grips: Bontrager XR Endurance Comp, lock-on
Headset: Semi-integrated, 1-1/8''
Brake: Tektro HD-M275 hydraulic disc, 180mm rotor
Brake Set: Tektro HD-M275 hydraulic disc, 160mm rotor
Rotor size: Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
Weight M - 32.63 lbs~
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
