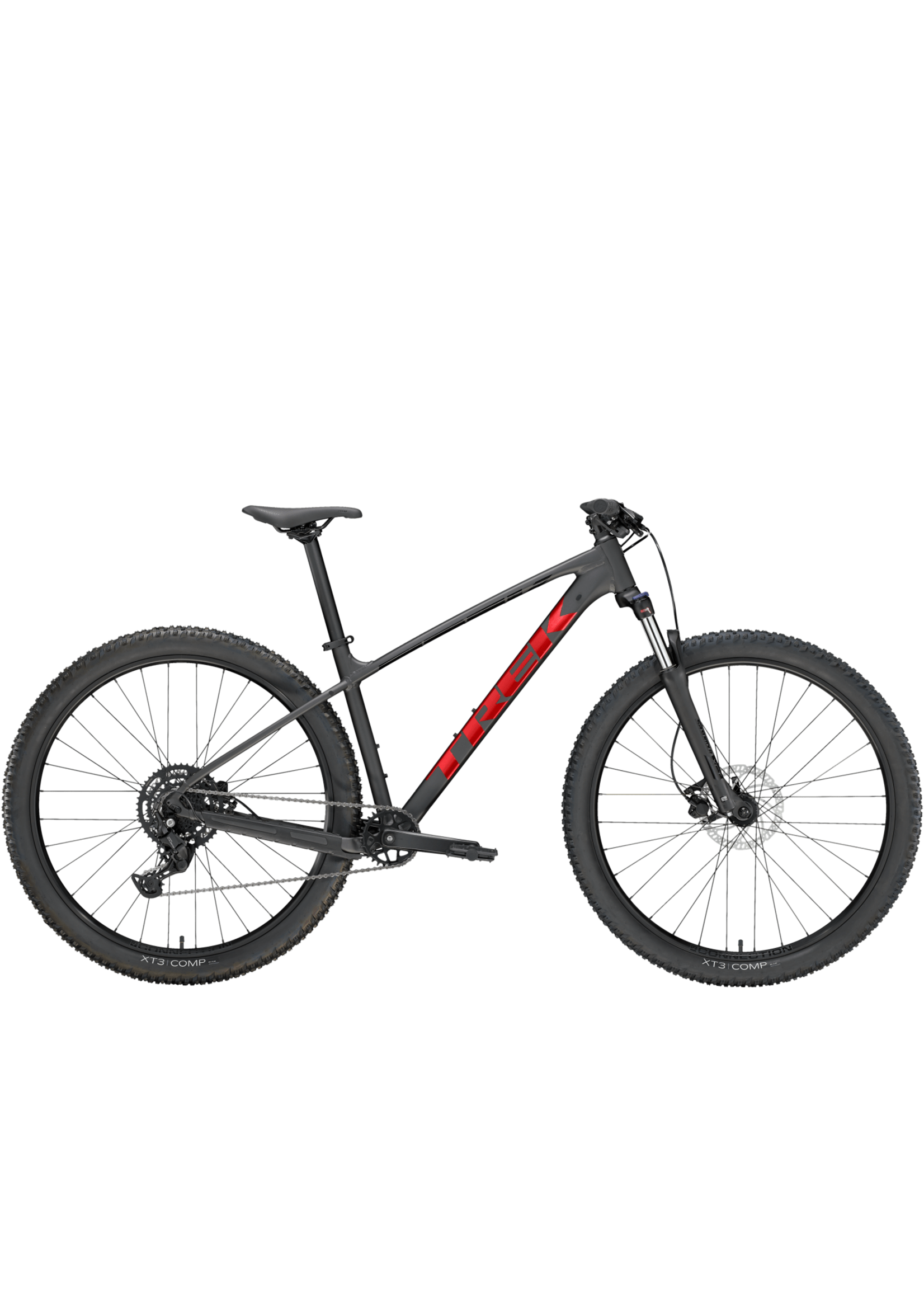

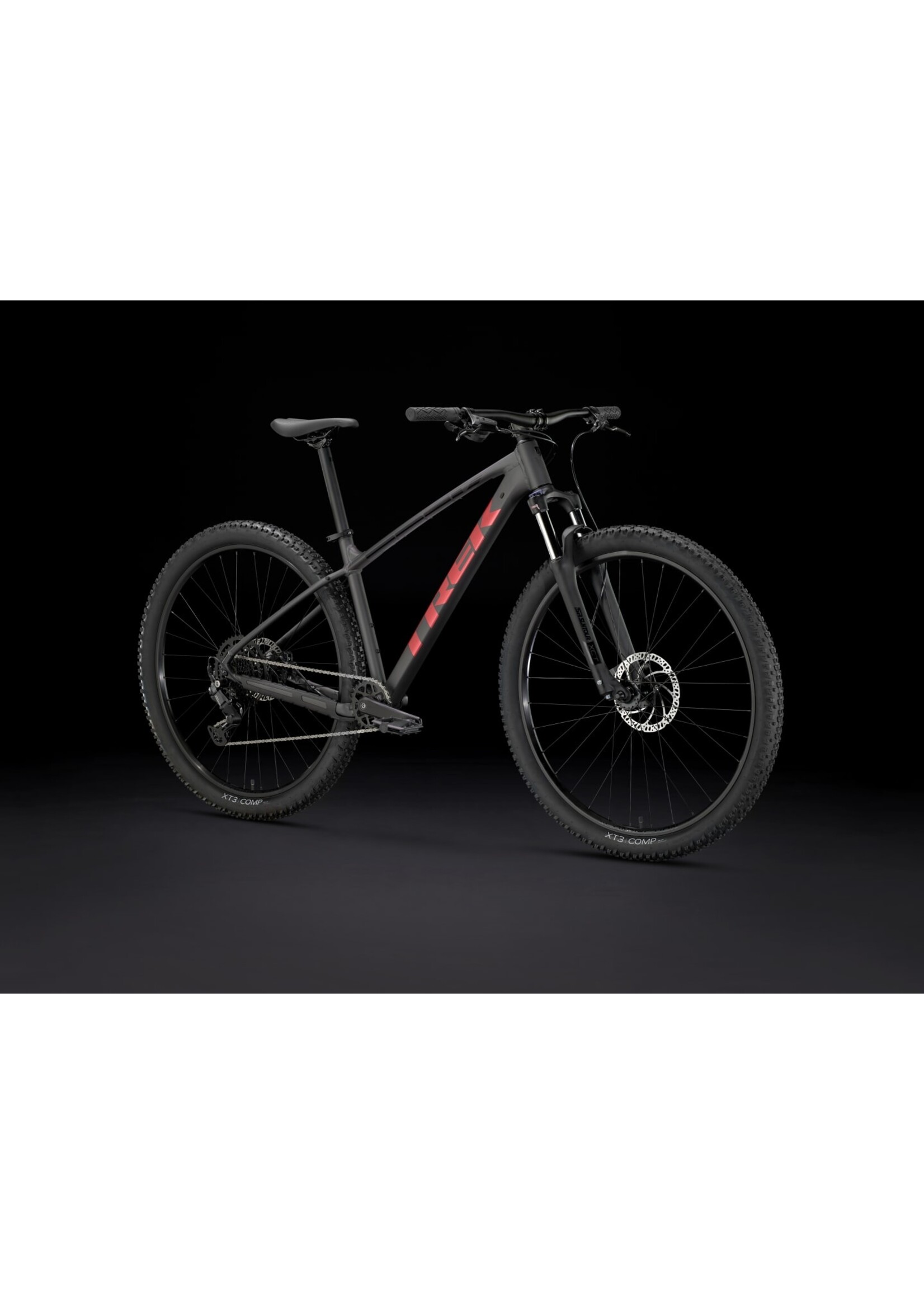

Trek's Marlin 5 is great if you're new to the trail and you’re looking for a real mountain bike that doubles as a commuter — and you want it all at an exceptional value.
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
*Bikes are only available for in-store pick-up.
*Frame Size: S , M , ML , L , XL

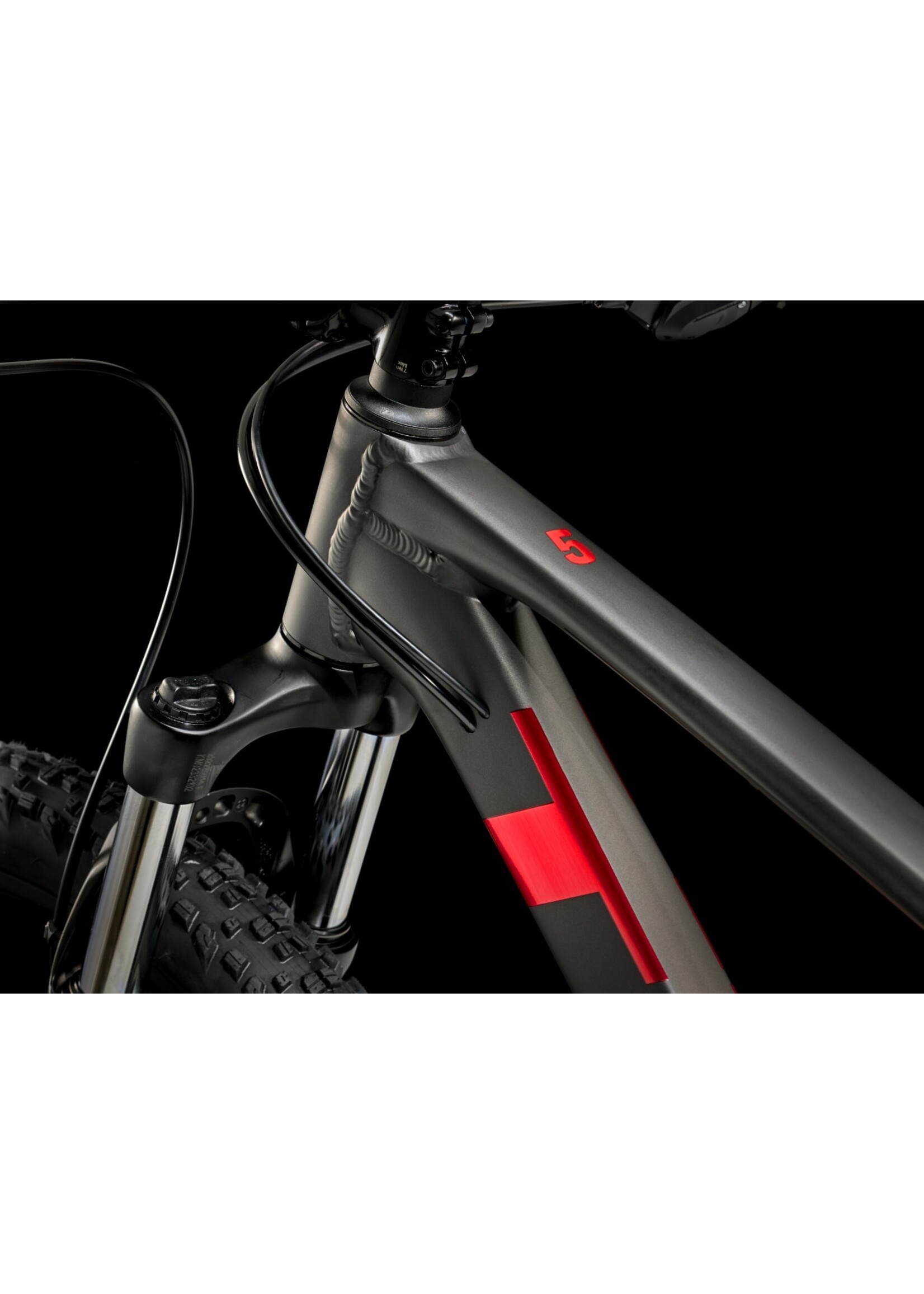

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork Size: S

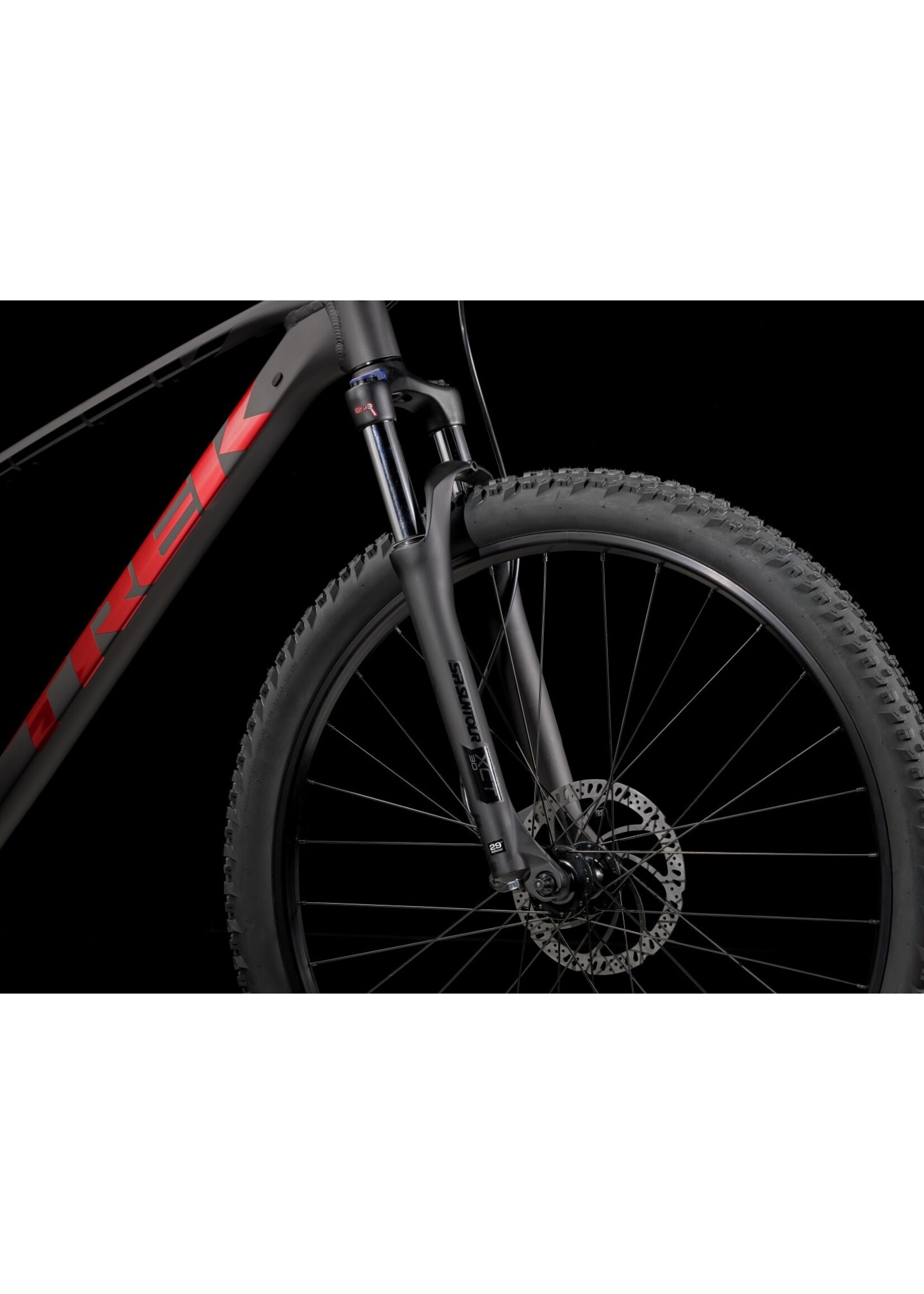

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Fork Size: M , ML , L , XL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel: 120mm, XXS: 80mm
Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear: 173x5mm QR

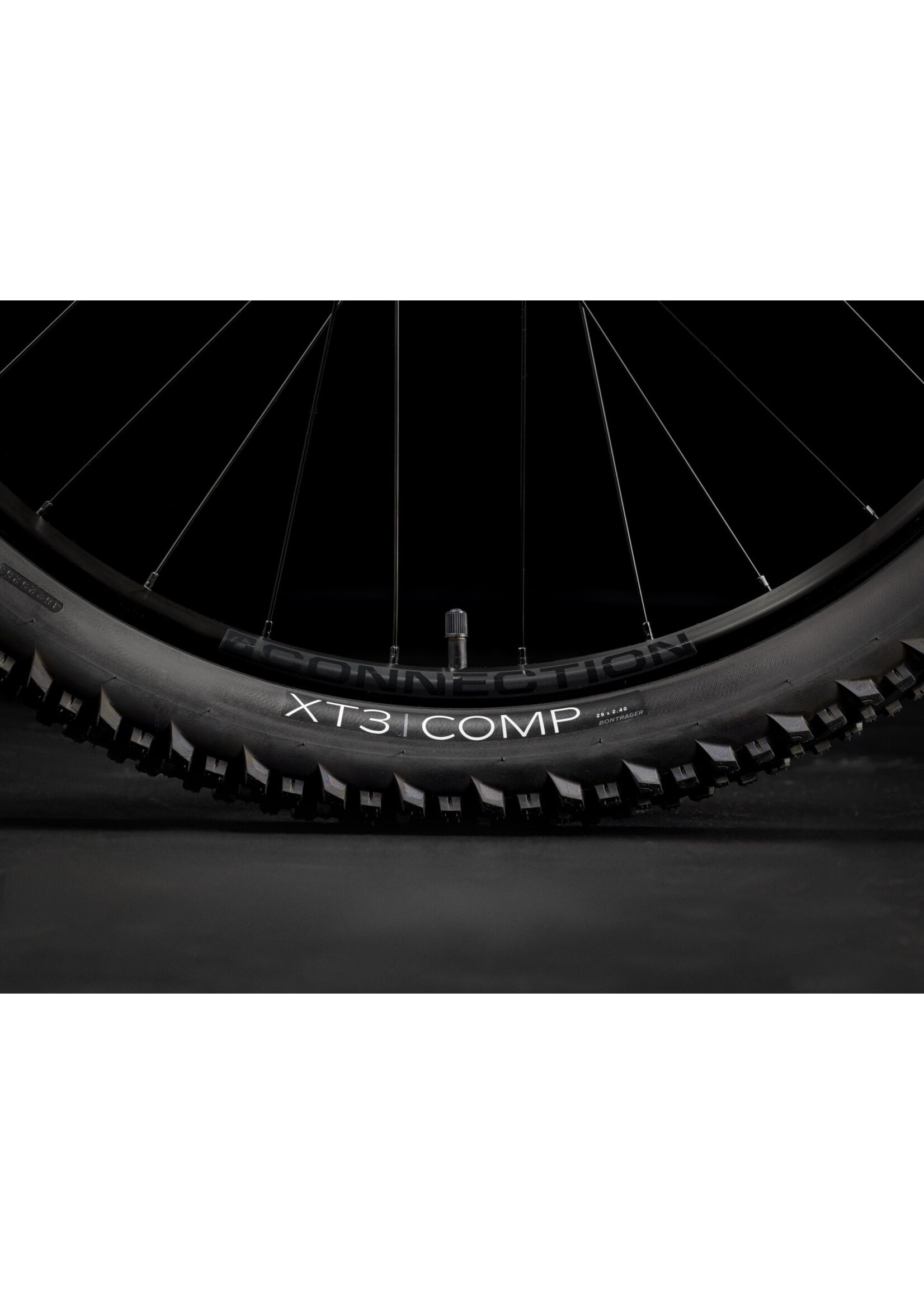

Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, Schrader valve
Spokes: 14g stainless steel, black
*Tire Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
Size: M , ML , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
Max tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40")
Shifter: Shimano U4000, 9 speed

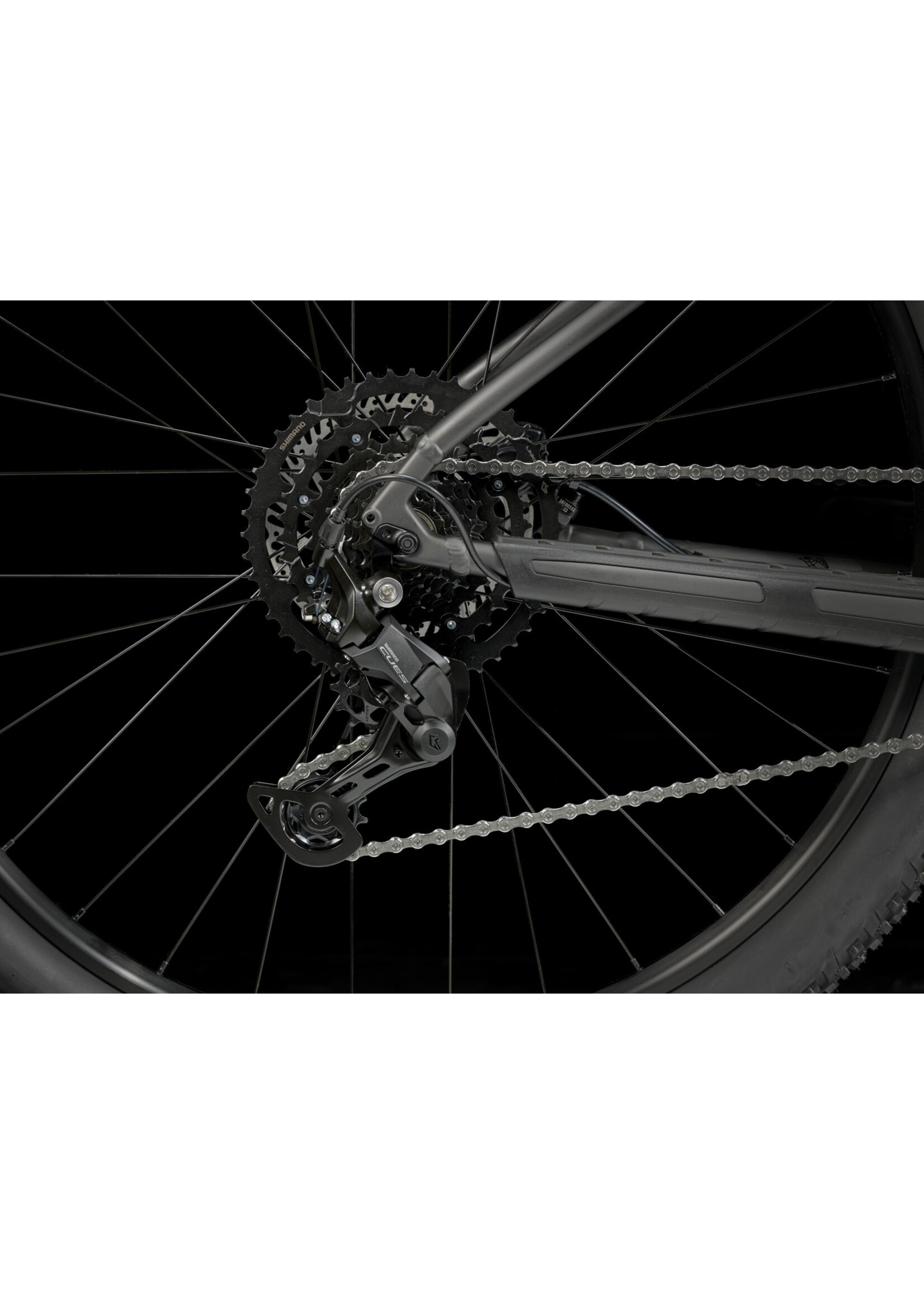

Rear derailleur: Shimano CUES U4000
*Crank Size: XS

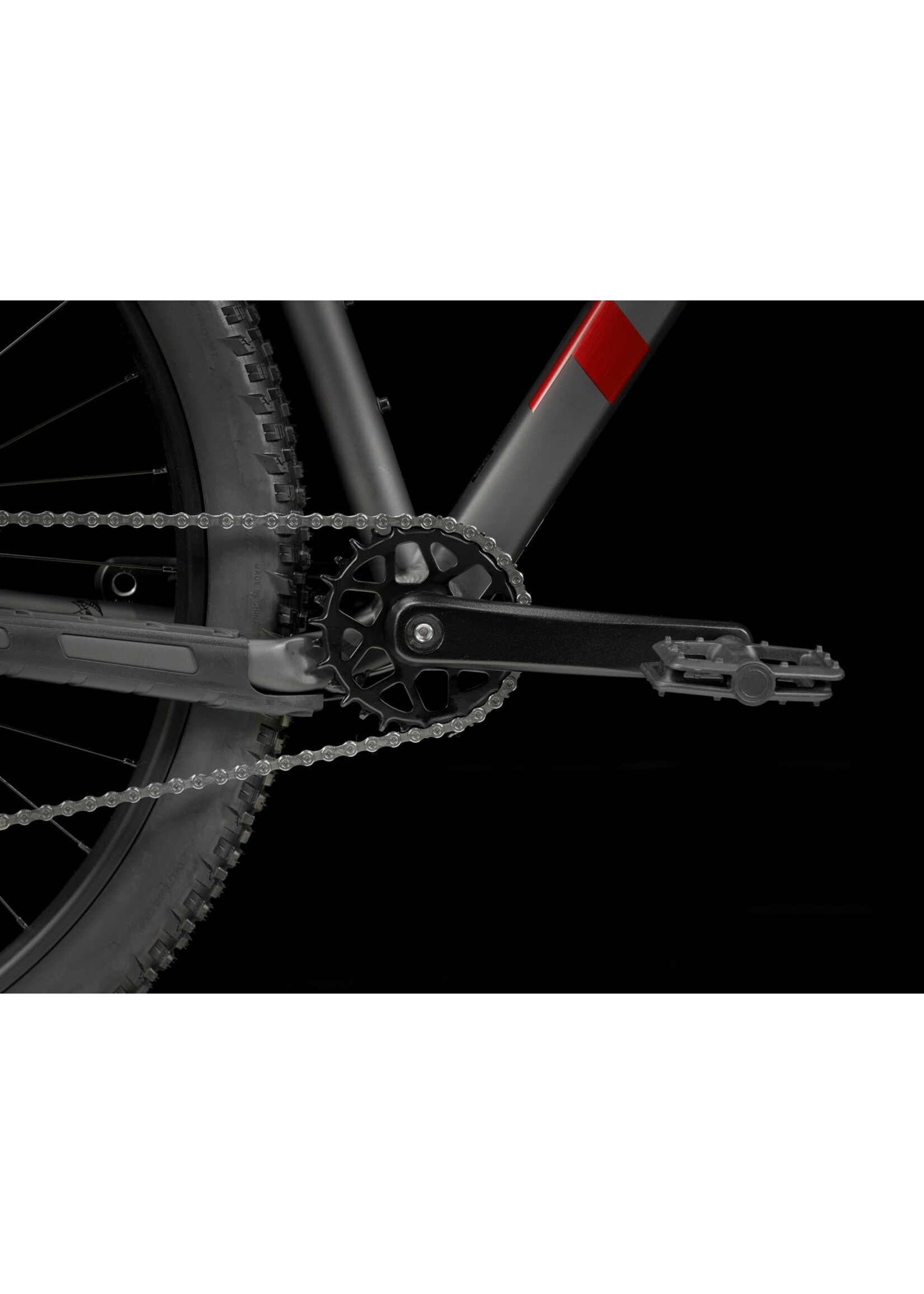

Prowheel C10Y-NW, 30T steel narrow-wide ring, 160mm length
Size: S , M , ML
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
Size: L , XL
Prowheel C10Y-NW, 30T steel narrow-wide ring, 175mm length
Bottom bracket: VP BC73, 73mm, threaded cartridge
Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed

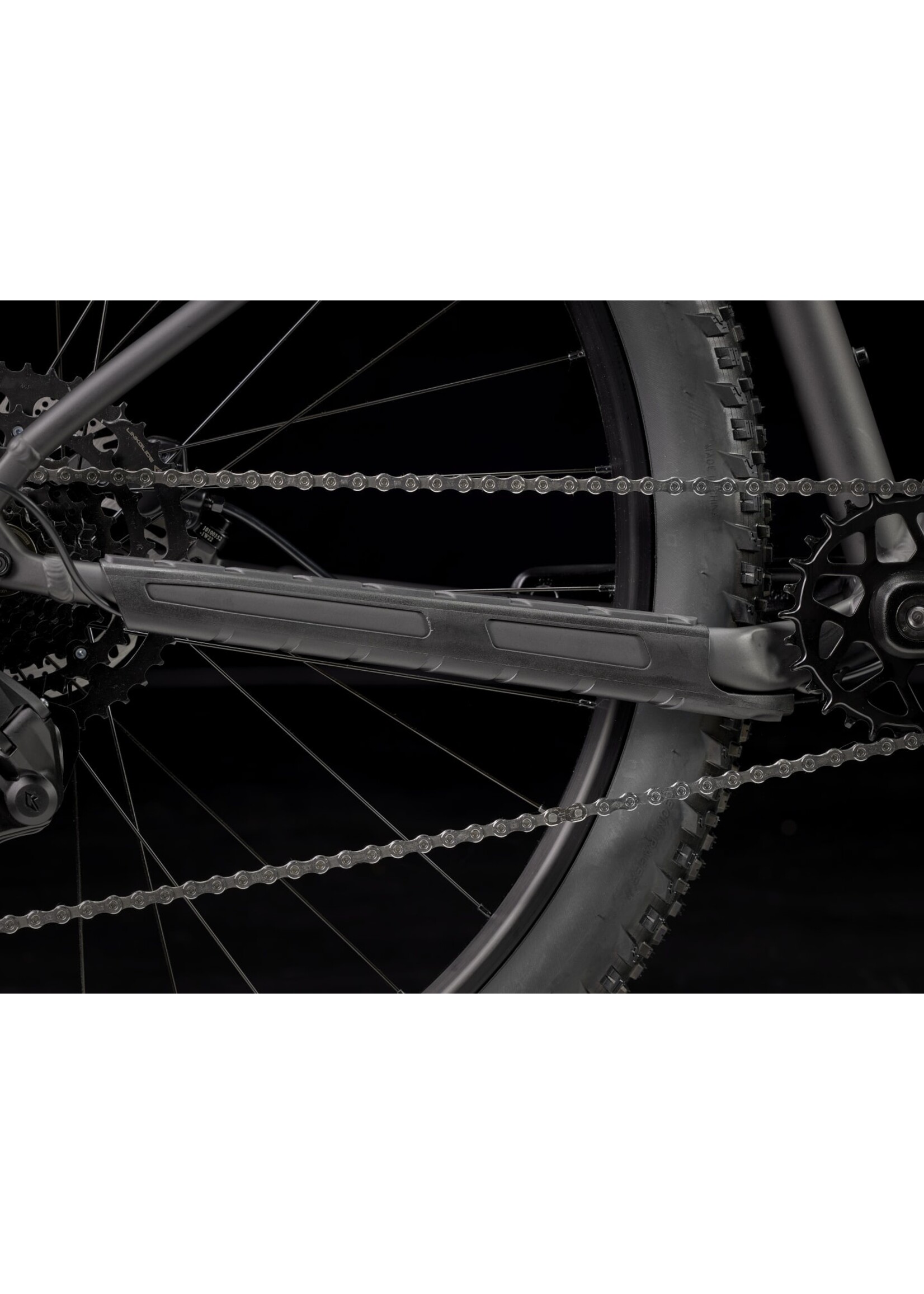

Chain: Shimano LG500, 9/10/11 speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: See FAQ, 2x: 36T, 3x: 42T
*Seatpost Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
*Stem Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, 1-1/8''

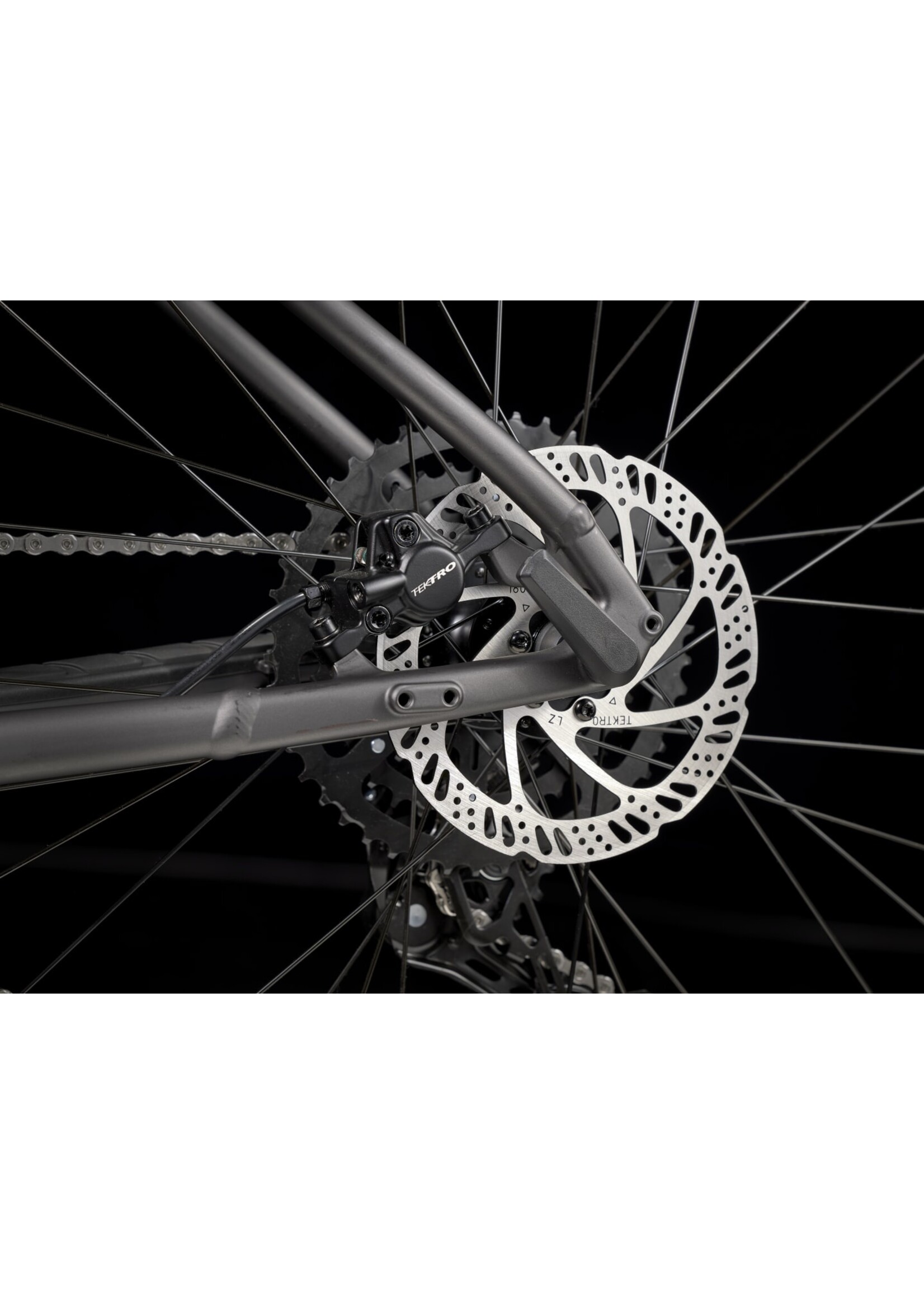

Brake rotor: Tektro, 6-bolt, 160mm
*Brake Set Size: XS , S
Tektro HD-M276 hydraulic disc, short reach
Size: M , ML , L , XL
Tektro HD-M275 hydraulic disc
Rotor size: Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer
Weight M - 15.10 kg / 33.29 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
