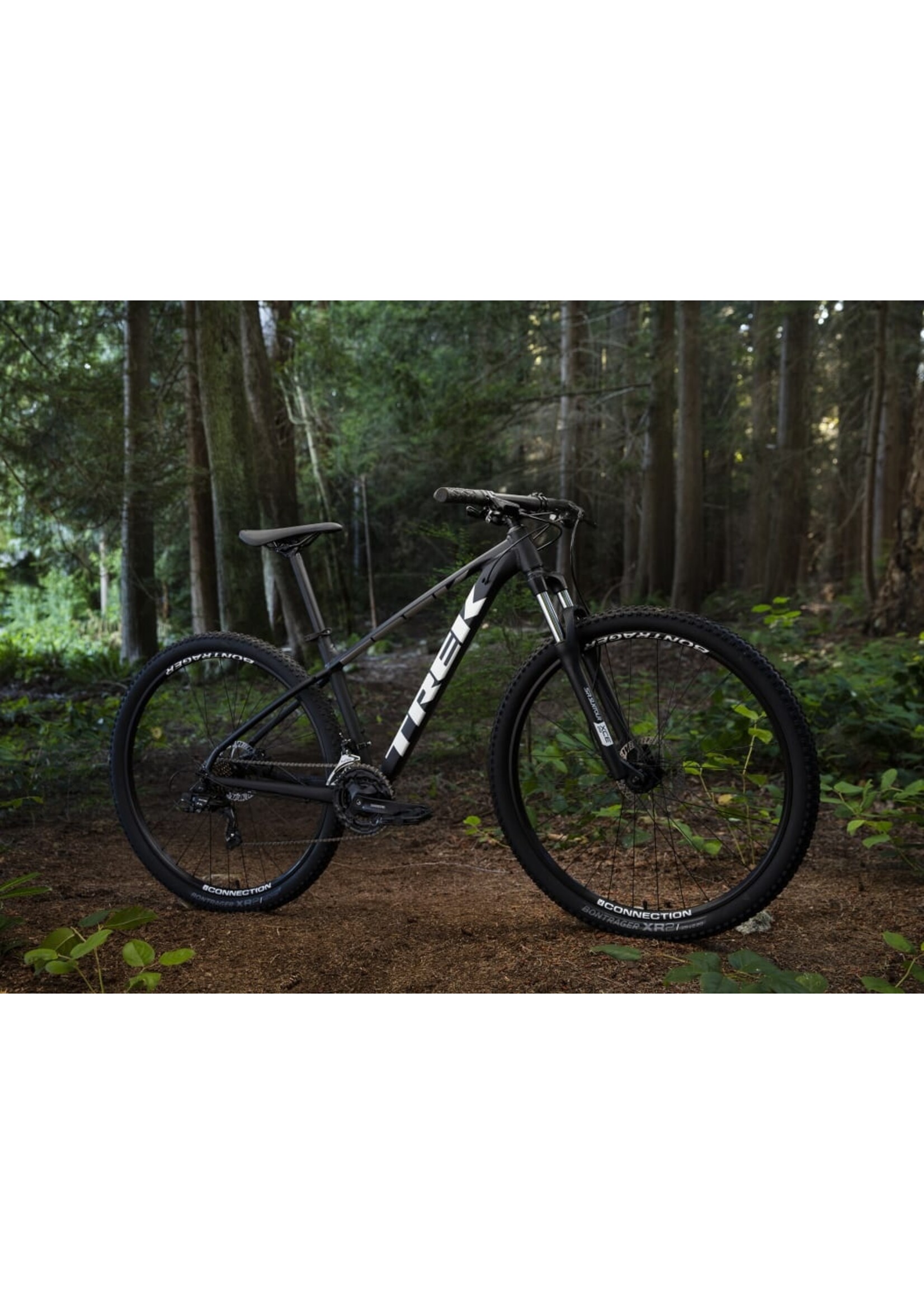

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A front suspension fork with 100mm of travel, 21 speeds, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Frameset
- Frame: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
- Fork: SR Suntour XCE 28, coil spring, preload, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)
- Max compatible fork travel: 100mm
Wheels
- Front hub: Formula DC20 alloy
- Rear hub: Formula DC27 alloy
- Rims: Bontrager Connection 32-hole double-walled
- Tires: Bontrager XR2, 29x2.20˝ front, 29x2.0˝ rear (13.5 & 15.5: 27.5x2.20˝)
- Max tire size: 29x2.20" (XS & S: 27.5x2.4")
Drivetrain
- Shifters: Shimano Altus M310, 7 speed
- Front derailleur: Shimano Tourney TY300
- Rear derailleur: Shimano Tourney TY300
- Crank: Shimano Tourney TY301, 42/34/24
- Max chainring size: 1x: 32T, 3x: 42T
- Bottom bracket: Sealed cartridge, 73mm
- Cassette: Shimano HG200, 12-32, 7 speed
- Chain: KMC Z51
- Pedals: VP-536 nylon platform
Components
- Saddle: Bontrager Arvada
- Seatpost: Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset
- Handlebar: Bontrager alloy, 31.8mm, 5mm rise
- Grips: Bontrager XR Endurance Comp, lock-on
- Stem: Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
- Headset: 1-1/8˝ threadless, semi-integrated, semi-cartridge bearings
- Brakeset: Tektro HD-275 hydraulic disc (13.5 & 15.5: Tektro HD-276 short reach lever)
- Weight: M - 32.17 lbs
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
