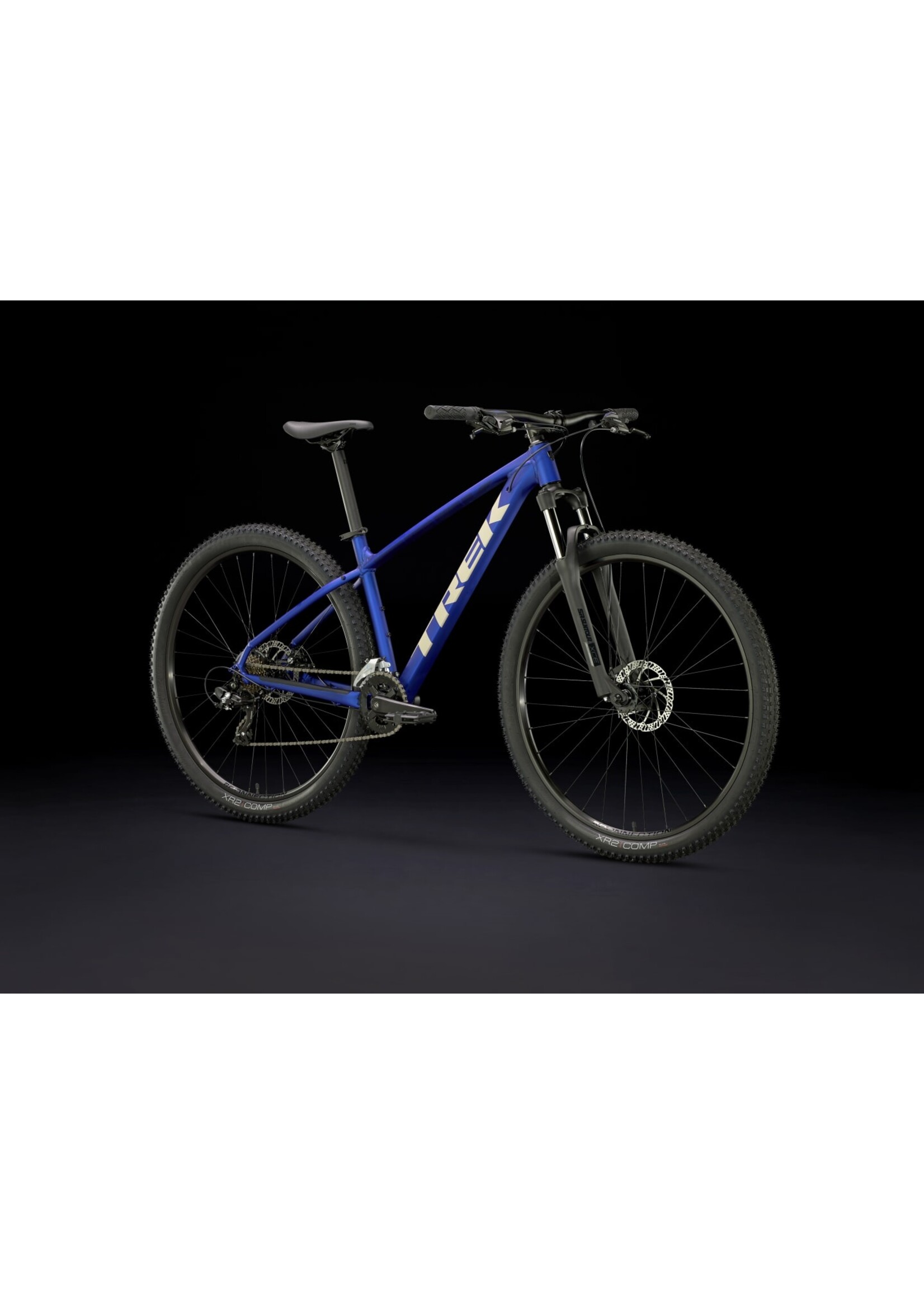

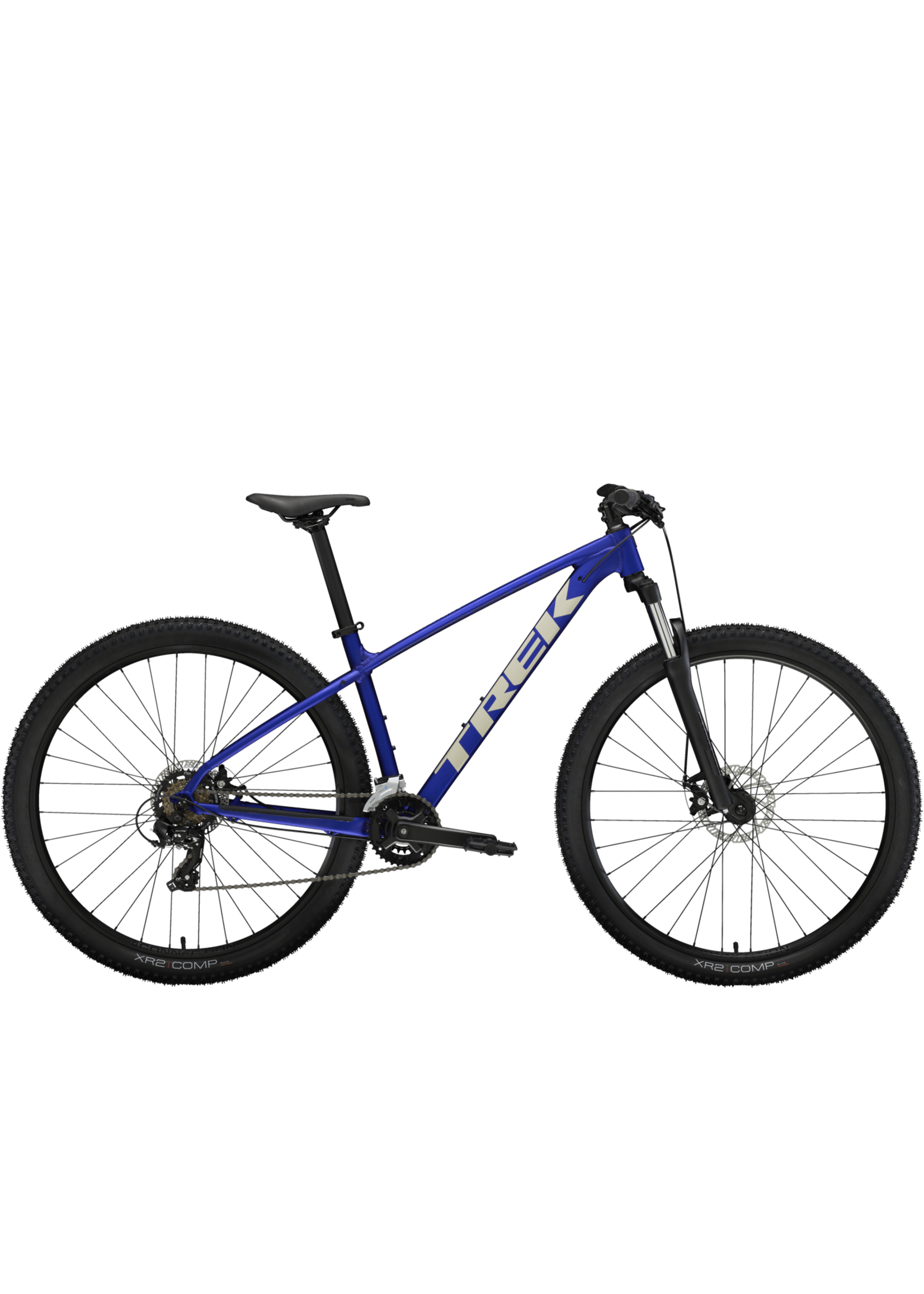

Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting, and mounts for a rack and fenders make this a great bike for trail riders and campus commuters alike.

Frameset

• *Frame:
  • - Size XS , S: Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
  • - Size: M , ML , L , XL: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

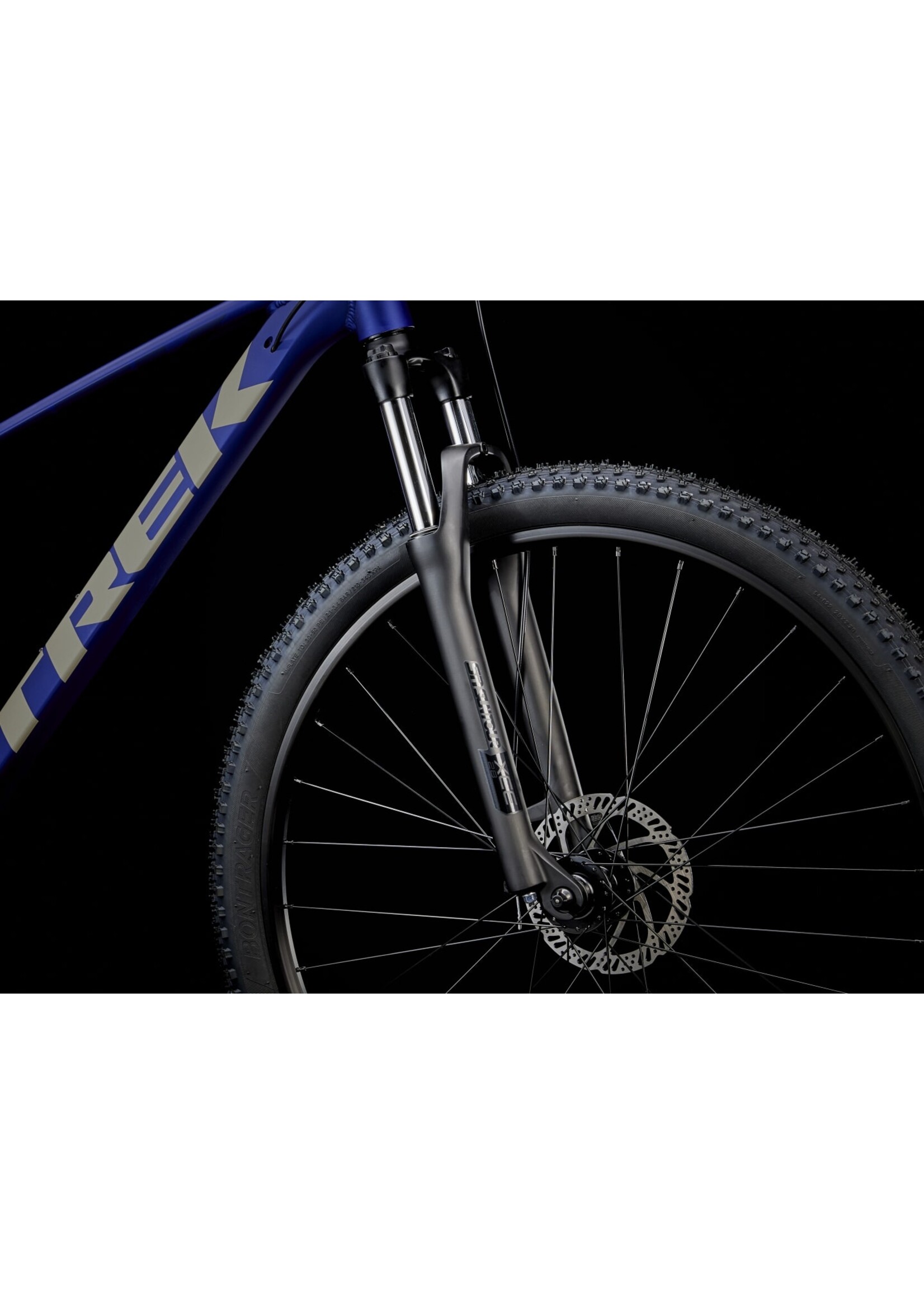

• *Fork:
  • - Size XS: SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
  • - Size S: SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • - Size M , ML , L , XL: SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
• Max compatible fork: travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
• Skewer rear: 152x5mm QR

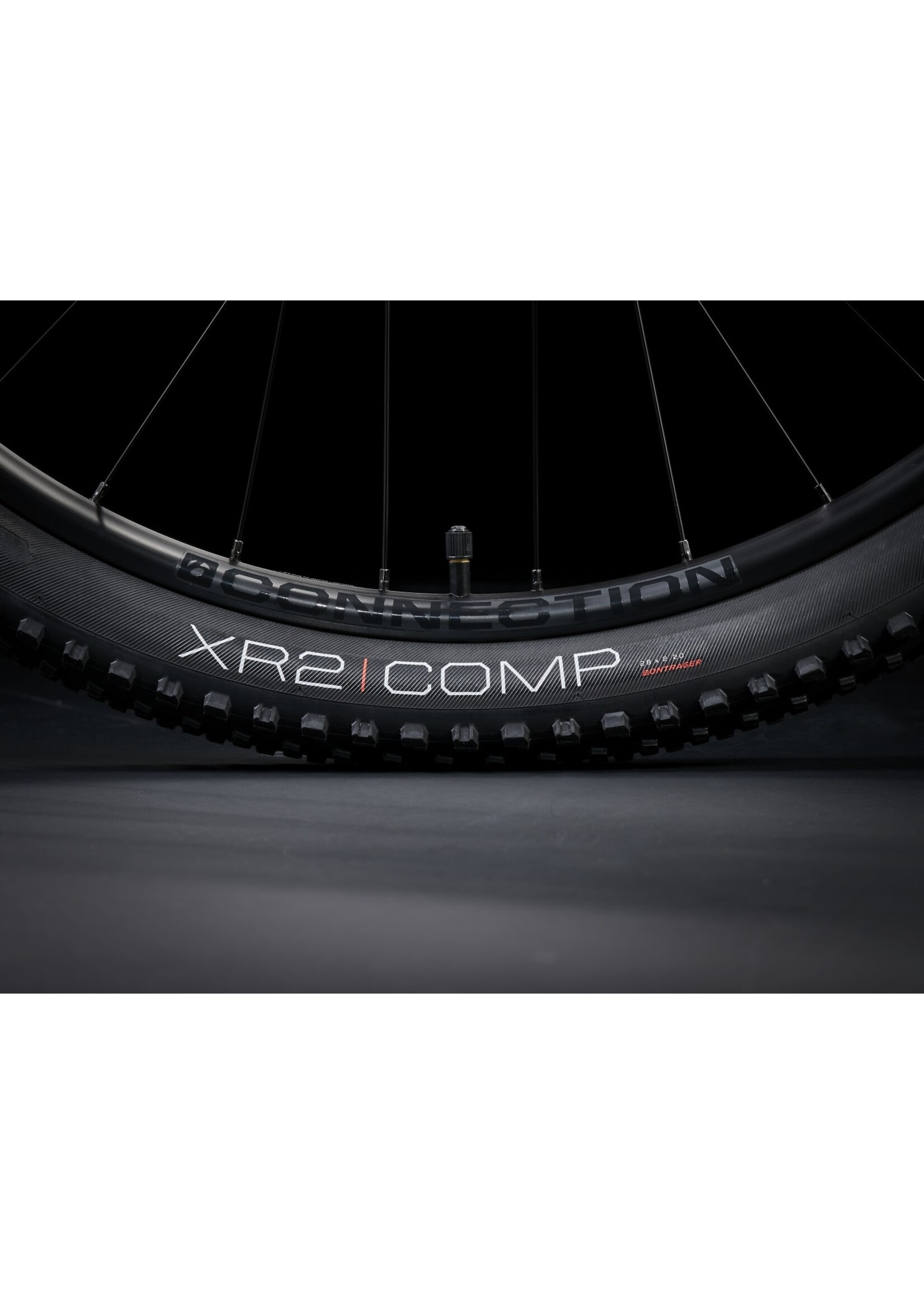

• *Rim:
  • - Size XS , S: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
  • - Size M , ML , L , XL: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
• Spokes: 14g stainless steel, black
• Max tire size: Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain

• *Shifter
  • - Size XS , S , M , ML , L , XL: Shimano EF500, 8 speed
  • - Size XS , S , M , ML , L , XL: Shimano EF500, 7 speed
• Front derailleur: Shimano Altus M315, 34.9mm clamp, top swing, dual pull

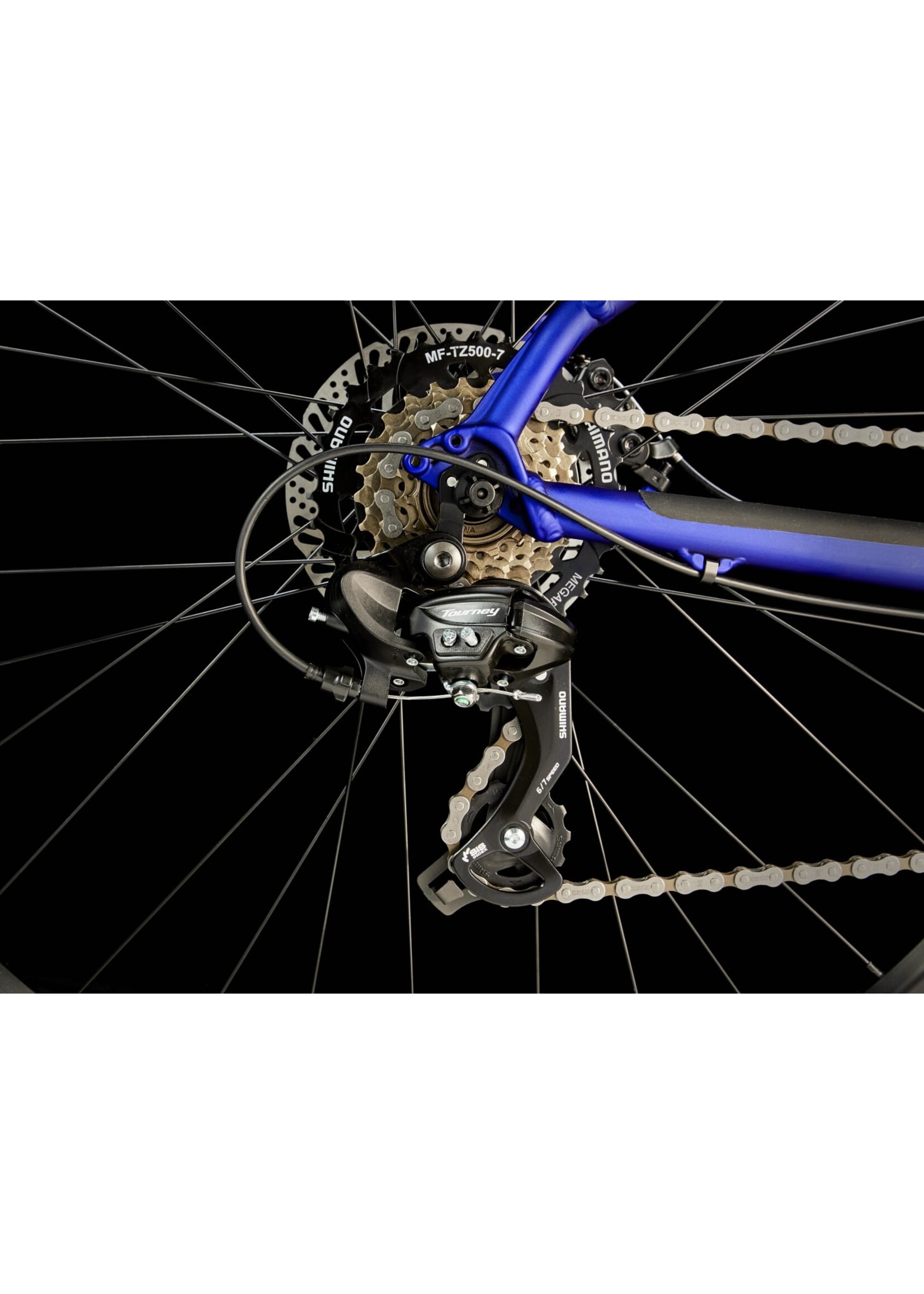

• Rear derailleur: Shimano Tourney TY300

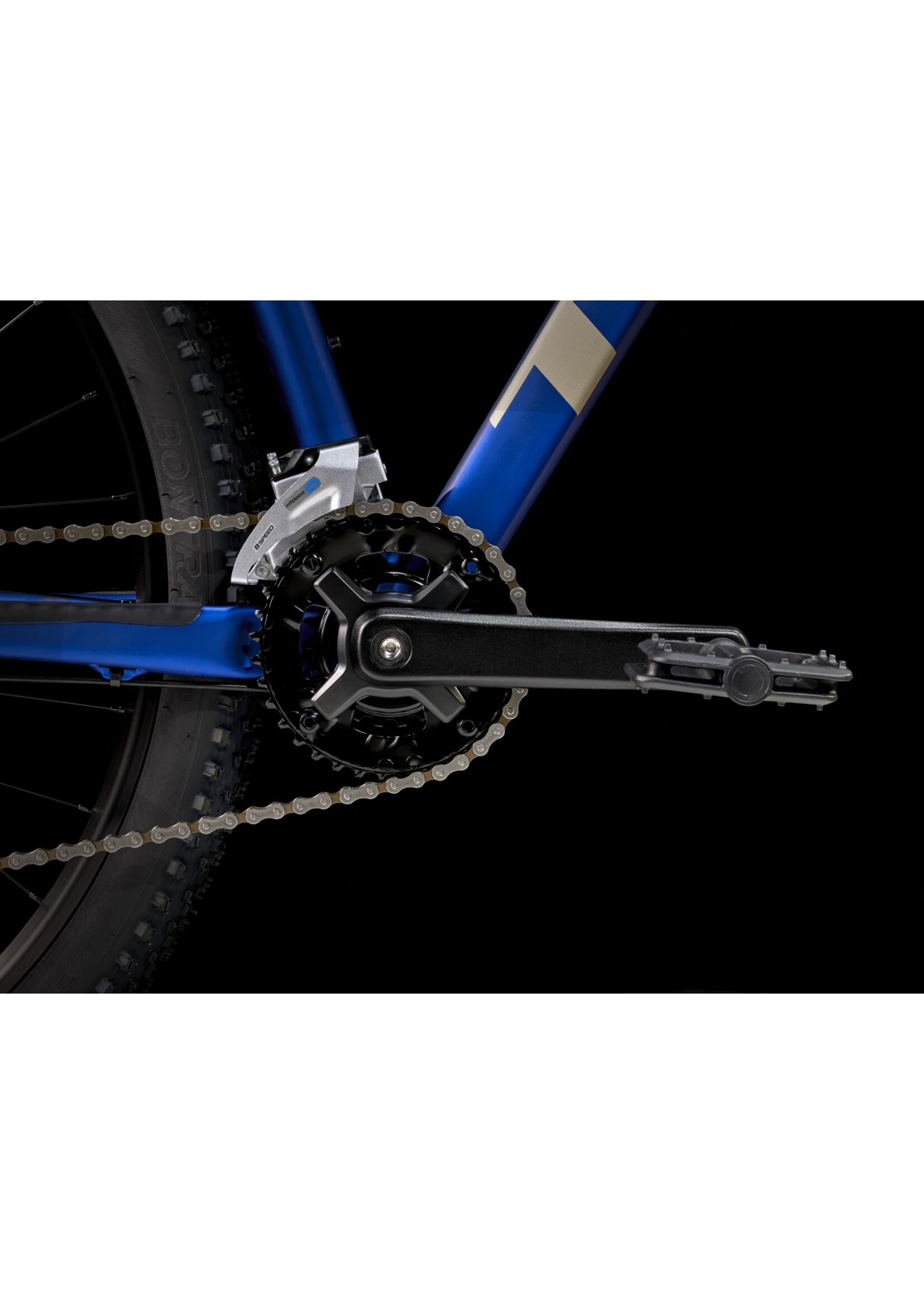

• *Crank:
  • - Size XS , S , M: ProWheel TM-CY10, 36/22, 170mm length
  • - Size ML , L , XL: ProWheel TM-CY10, 36/22, 175mm length
• Bottom bracket: VP BC73, 73mm, threaded cartridge
• Cassette: Shimano TZ500, 14-34, 7 speed
• Chain: KMC Z7, 7 speed
• Pedal: VP-536 nylon platform
• Max chainring size: 1x/2x: 34T, 3x: 42T

Components

• Saddle: Bontrager Verse Short, stainless steel rails
• *Seatpost
  • - Size XS , S: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • - Size M: Bontrager alloy, 31.6mm, 12mm offset, 360mm length
  • - Size ML , L , XL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• *Handlebar
  • - Size XS , S: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • - Size M , ML , L , XL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Grips Bontrager XR Endurance Comp, lock-on
• *Stem:
  • - Size XS , S: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • - Size M: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • - Size ML , L: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • - Size XL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
• Headset: Semi-integrated, 1-1/8''
• *Brake
  • - Size XS , S , M , ML , L , XL: Tektro MD-M280 mechanical disc
  • - Size XS , S , M , ML , L , XL: Tektro MD-M281 mechanical disc
• Brake rotor: Tektro, 6-bolt, 160mm
• Rotor size: Max brake rotor sizes - Frame: 180mm, min 160mm, Fork: see fork manufacturer

Weight

• Weight M - 14.60 kg / 32.19 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
