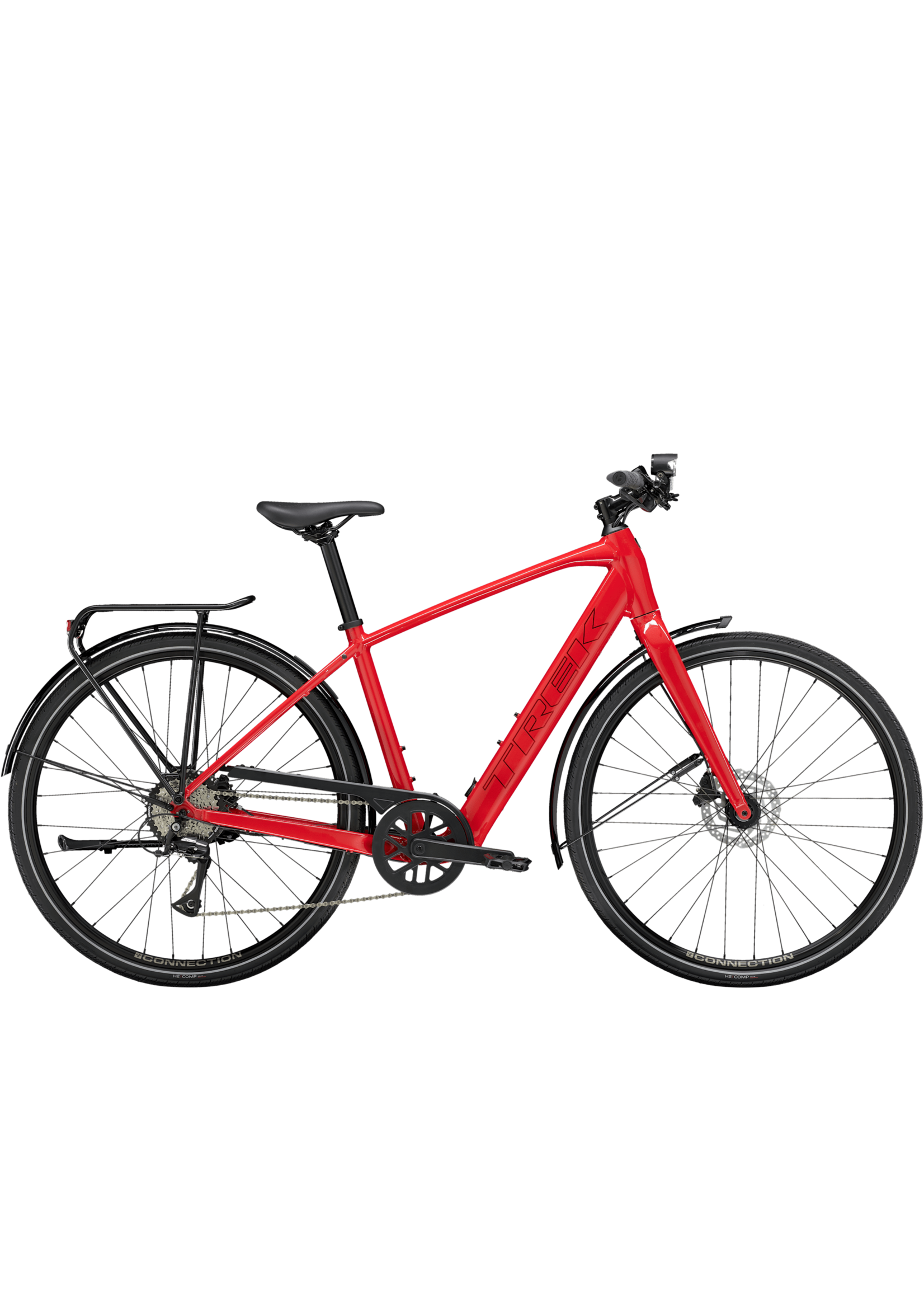

FX+ 2 is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze.

A lightweight aluminum frame and fork, Trek's proprietary pedal assist system by Hyena with a hub motor (250W, 40Nm) that assists up to 20 mph, and a 250Wh battery for a range of up to 35 miles per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tires with reflective sidewalls, a reliable 8-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, an MIK-compatible rear rack, fenders, and a kickstand.

*Bikes are only available for in-store pick-up.

Specs

Frameset

Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing

Fork: FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Wheels

Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR

Skewer front: 132x5mm QR

Hub rear: Hyena hub drive motor, 40Nm, 250W

Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

Spokes: 14g stainless steel, black

Tire: Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40mm

Max tire size: 50mm without fenders, 45mm with fenders

E-system

Battery: 250Wh, integrated in down tube

Charger: 2A, 42V output, 100V-240V AC input

Computer: LED display

Drivetrain

Shifter: Shimano M315, 8 speed

Rear derailleur: Shimano Acera M3020-8, 40T max cog

*Crank Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
Size: L, XL
ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
Bottom bracket Torque sensor, threaded, 122.5mm spindle

Cassette: Shimano HG400, 11-40, 8 speed

Chain: KMC Z8.3

Pedal: Bontrager City pedals

Max chainring size: 1x: 44T

Components

Saddle: Bontrager Sport

*Seatpost Size: S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 690mm width

Grips: Bontrager XR Endurance Comp, lock-on

*Stem Size: S, M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: L, XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length

Brake: Shimano hydraulic disc, MT200 lever, UR300 caliper

Brake rotor: Shimano RT26, 6-bolt, 160mm

Rotor size: Max brake rotor sizes: 160mm front & rear

Accessories

*Light Size: S, M, L, XL
Herrmans MR4, 120 lumen, 40 lux, LED, headlight
Size: S, M, L, XL
Spanninga Solo, taillight

Kickstand: Adjustable length alloy kickstand

*Cargo rack Size: S, M, L, XL
MIK-compatible alloy rear rack
Size: S, M, L, XL
MIK-compatible alloy rear rack, maximum load 25 kg / 55 lbs

*Fender Size: S, M, L, XL
SKS plastic, rear
Size: S, M, L, XL
SKS plastic, front

Weight

Weight M - 17.75 kg / 39.14 lbs

Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
