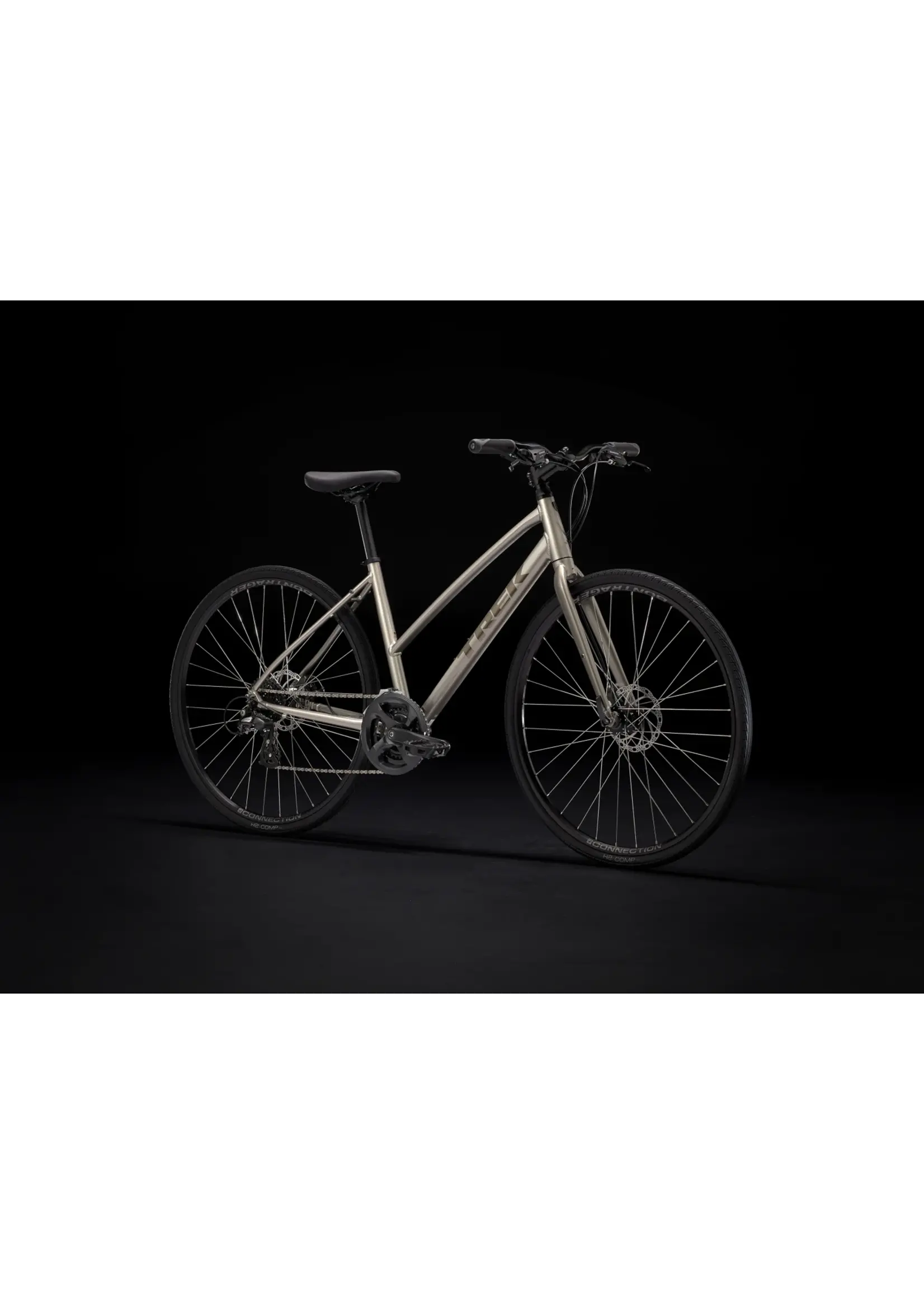

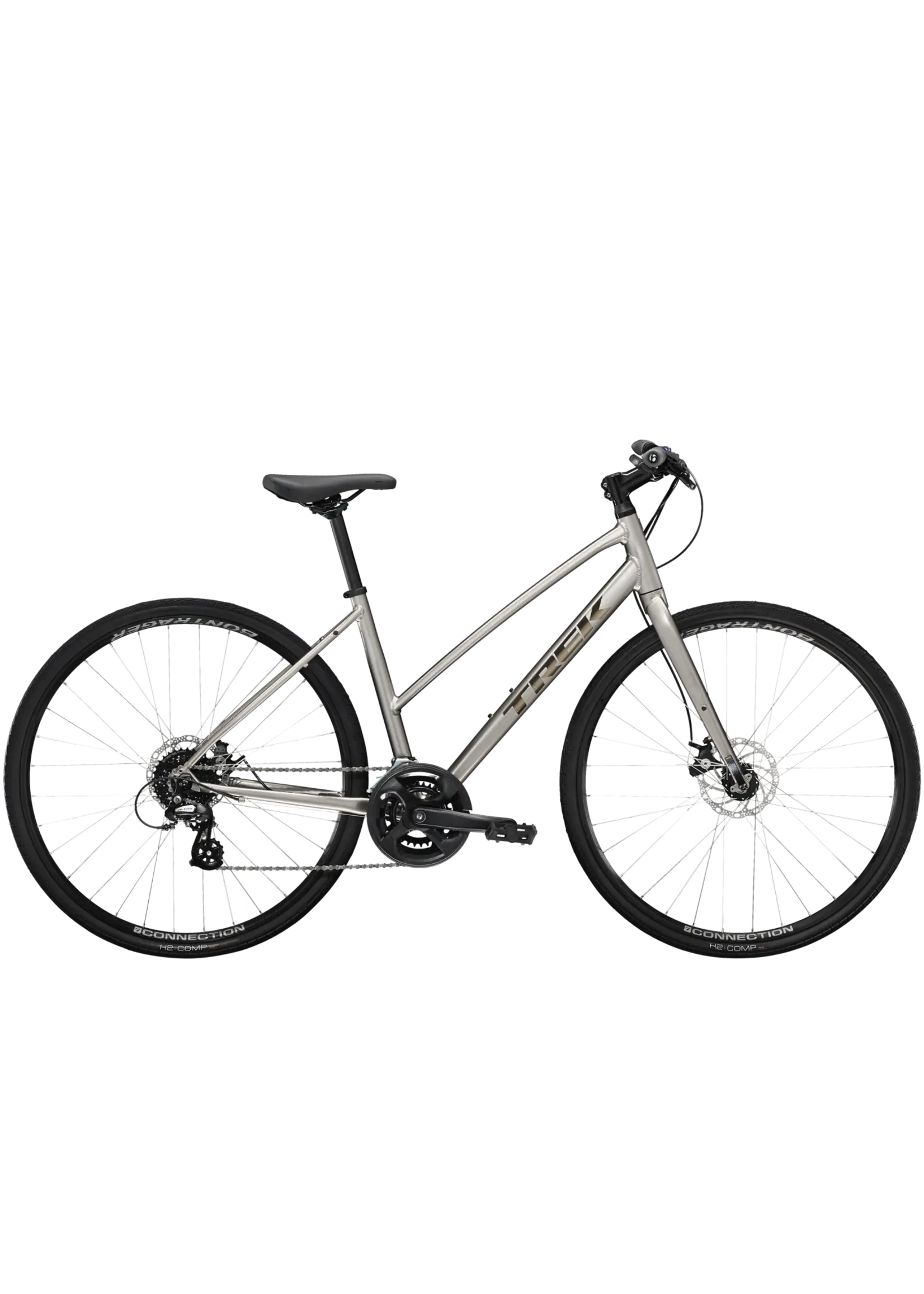

FX 1 Disc Stagger is a hybrid bike with a classic stepthrough frame design that's easier to mount and dismount and modern disc brakes that give you extra stopping power in all weather conditions. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.
Frameset
- Frame: Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
- Fork: FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR
Wheels
- Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
- Skewer front: 130x5mm QR, ThruSkew
- Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
- Skewer rear: 152x5mm QR
- Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
- Max tire size: 700x38mm without fenders, 700x35mm with fenders
Drivetrain
- Shifter: Shimano EF500, 8 speed
- Front derailleur: Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
- Rear derailleur: Shimano Altus M310
- Crank: Forged alloy, 46/30, chainguard, 170mm length
- Bottom bracket: Sealed cartridge, 68mm
- Cassette Shimano HG31, CS-HG31, 11-32, 8 speed
- Chain: KMC Z8.3
- Pedal: Wellgo nylon platform
- Max chainring size 1x: 42T, 2x/3x: 48T
Components
- Saddle: Bontrager Sport Women's
- Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- Handlebar: Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
- Grips: Bontrager Satellite
- *Stem Size: S, M
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Size: L
Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
- Headset: 1 1/8'' steel threadless
- Brake: Tektro MD-U310 mechanical disc, flat mount, 160mm rotor
- Rotor size: Max brake rotor sizes: 160mm front & rear
Weight
- Weight: M - 12.58 kg / 27.74 lbs
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
